22KW AC EV Charger

Name: 22KW AC EV Charger
Brand: ARK or OEM
Price: 1 USD

Brand Name : ARK or OEM

Model Number : AKEV22

Certification : CE

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units per month

Delivery Time : 25-45days

Packaging Details : carton

Input Voltage Range : 400Vac +/-10% 3-phase

Input Frequency Range : 50Hz/60Hz

Output Voltage Range : 400Vac +/-10%, 3-phase

Housing material : Metal

Rated Output Power : 22kW or 7KW

Warranty : 24 Months

Contact Now

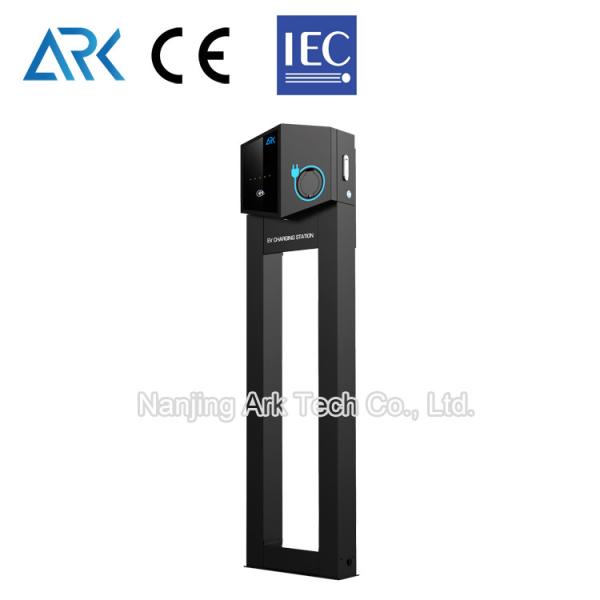

Ark AC 22kw EV Charging Station With Type 2 Sockets For Commercial Use

Product Introduction

22kW Type-2 connector and OCPP 1.6 function AC EV charging station with modern design suitable for commercial and public charging. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP1.6J protocol, it can be connected and operated with the global EV charging management platform.

Product Parameters

Technical specifications	AKEV22
System
Housing material	Metal enclosure
Dimension (H x W x D)	300450160mm, 1200450160mm (pedestal mount)
Installation method	Wall mount, pedestal mount (optional)
Cable routing	Bottom inlet wiring
Weight	N.W.: 11kg
Charging standard	IEC 61851-22
Charging outlet	Type-2 socket or connector
Outlet number	1
Input
Input voltage	230Vac +/-10% 1-phase	400Vac +/-10%, 3-phase
Input frequency	50Hz/60Hz
Output
Max output power	7kW	22kW
Measuring accuracy	Level 0.5
Output voltage range	230Vac +/-10% 1-phase	400Vac +/-10%, 3-phase
Output current range	32A
RCCB	Type-B, sensitivity: 30mA
General
Charging type	Mode 3
User Interface	RFID, LCD Display
AC connector type	IEC 62196 Type-2
Communication	PWM, Ethernet, LTE, OCPP 1.6J
Application place	Indoor/Outdoor
Working temperature	-30 °C – +50 °C
Working humidity	5% – 95% non-condensation
Altitude	<2000m
Protection grade	IP55
Cooling	Natural cooling
Safety standard	Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

22KW AC EV Charger

Features

4.3-inch display, unique user interface.
LED status display.
OCPP1.6 integration.
Ethernet and LTE networks
Wall mounting and pedestal mounting are optional
Sockets and cable sockets are optional
OEM and brand service

Application

Shopping mall

Company charging

Parking lot

Supermarket

Company Introduction

At Ark Technology, we hope to establish a one-stop turn-key electric vehicle AC/DC charger solution to make us your first choice for electric vehicle AC/DC charger project. Ark technology team has a great vision, to provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge of electrical and digital power supply, we will provide you with the most professional and practical project implementation guidance.

FAQ:

Q: Does your charger support OCPP?

Yes, our charger supports OCPP 1.6, which can connect to the Internet via Ethernet, 3G/4G.

Q: What about the quality and warranty of the charger?

All our chargers are CE certified. We offer a 24-month warranty on the charger and a lifetime of technical support.

Note:

1 - OEM support.

2- If you have any requirements, please contact us for details.

We will reply to your inquiry within 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above is for reference only, the final price is decided by the charger KW, please contact us to get the correct quotation.
